New 2025 Harley-Davidson® Low Rider™ S FOR SALE NEAR Durham, NC

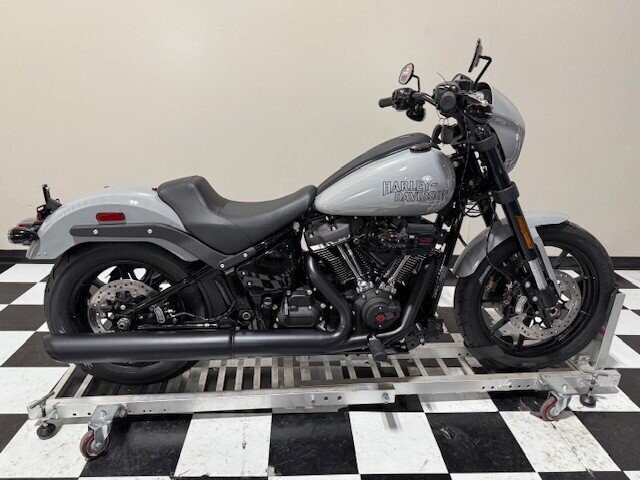

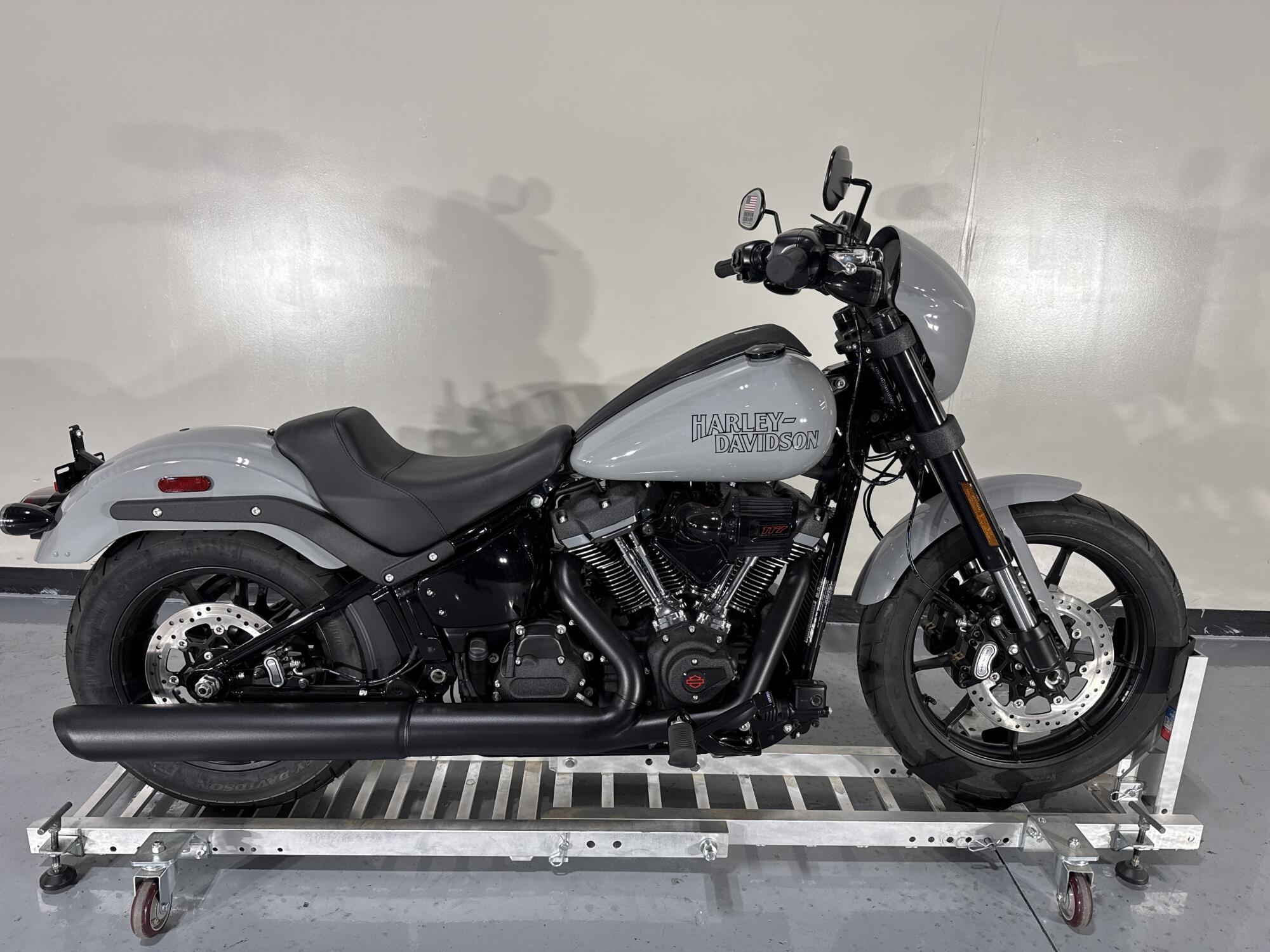

This New Billiard Gray 2025 Harley-Davidson® Low Rider™ S is for sale at Raging Bull Harley-Davidson located in Durham, NC. Contact Raging Bull Harley-Davidson of Durham, NC today to schedule a test-ride. If this isn't the exact Harley-Davidson® you're looking for don't hesitate to go back and revise your search. We're sure to have the perfect new motorcycle for you on our showroom in Durham where we host one of the largest selections of new and used motorcycles. Visit Raging Bull Harley-Davidson of Durham, your NC Harley-Davidson® dealership. NC’s premier new & used motorcycle dealer, we'll help you ride home on a new Harley-Davidson® today!

Raging Bull Harley-Davidson

Easy Financing. Call Today!

Map Directions: 300 Muldee St

Click To Call: 984-259-0373

With bold styling, an aggressive stance, and unrelenting power from the Milwaukee-Eight? 117 High Output engine, the Low Rider S is a custom-style cruiser that is ready to rip from the factory.

Specifications

Dimensions

add remove
- Length:

  92.9 in
- Seat height, unladen:

  28.1 in
- Rake (steering head):

  28
- Trail:

  5.7 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  644 lbs
- Weight, in running order:

  670 lb
- Tire, type:

  Michelin® Scorcher 31, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 High-Output
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  128.3 ft-lb
- Engine torque (RPM):

  4000
- Horsepower:

  114 HP / 85 kW @ 5000 rpm
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
